Ceratizit
52806205

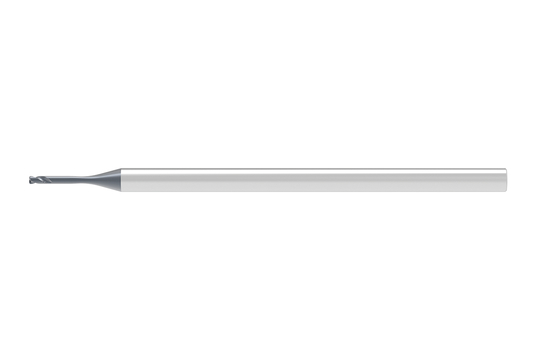

SOLID CARBIDE MICRO TORUS MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.756 |
|---|---|
| Corner Radius (Inch) | 0.02 |
| Corner Radius (Metric) | 0.5 |
| Short Description | N.TO.2,0.30°.Z2.R0,5.HA.L10 DPA72S |
| Long Description | SOLID CARBIDE MICRO TORUS MILLING CUTTER N.TO.2,0.30°.Z2.R0,5.HA.L10 DPA72S |
| Neck Diameter (Metric) | 1.6 |
| Neck Diameter (Inch) | 0.063 |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 2 |
| Shank Length (Inch) | 1.976 |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 30 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (mm) | 7 cm |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Item Weight (lbs) | 0.074 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | ±0.01 |
| Protruding Length (Metric) | 19.8 |
| Cutting Diameter (mm) | 2.00 mm |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 12 |
| Item Length (Inches) | 3.23 |
| Coating | DPA72S |
| Head Length (Inch) | 0.394 |
| Shank Length (mm) | 50.2 |
| Head Length (Metric) | 10 |
| Cutting Diameter (Inch) | 0.079 |
| Corner Radius Tolerance (Metric) | ±0.005 |
