Ceratizit
52864200

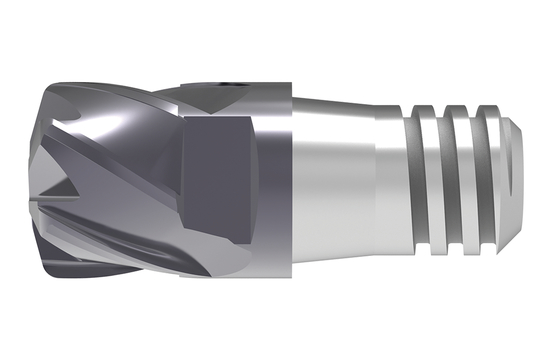

HFC SOLID CARBIDE HIGH FEED CUTTER
Specifications
| Corner Radius (Inch) | 0.067 |
|---|---|
| Material | 5286420000 |
| Coating/Finish | TI1100 |
| Helix Angle | 30 |
| Neck Diameter (Inch) | 0.780 |
| Cutting Direction | RIGHT |
| Cutting Diameter (Inch) | 0.394 |
| Neck Diameter (Metric) | 19.8 |
| Corner Radius (Metric) | 1.7 |
| Long Description | HFC SOLID CARBIDE HIGH FEED CUTTER MUC-N.H-HV.20,0.30°.Z6.KLG16.IK TI1100 |
| Short Description | MUC-N.H-HV.20,0.30°.Z6.KLG16.IK TI1100 |
| Product Line | WNT_PERFORMANCE |
| Nominal Size (Metric) | 16.00 |
| Depth of Cut Maximum (Metric) | 15.00 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 30 |
| Cutting diameter maximum (inch) | 0.787 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 1.42 |
| Overall Length (Decimal Inch) | 1.858 |
| Overall Length (mm) | 4.72 cm |
| Base Material | VHM |
| Item Weight (lbs) | 0.397 |
| Item Height (Inches) | 1.42 |
| Protruding Length (Metric) | 25.00 |
| Cutting Diameter (mm) | 1.00 cm |
| Peripheral Effective Cutting Edge Count | 6 |
| Drive Size (Metric) | 16 |
| Item Length (Inches) | 3.23 |
| Cutting diameter maximum (Metric) | 20.00 |
