Ceratizit
52869100

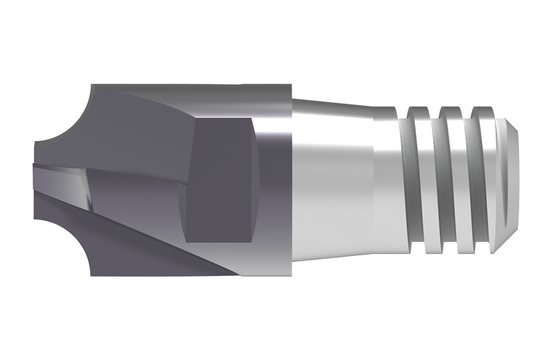

SOLID CARBIDE QUARTER ROUND CUTTER
Specifications
| Material | 5286910000 |
|---|---|
| Coating/Finish | TI1100 |
| Helix Angle | 20 |
| Head Length (Inch) | 0.256 |
| Cutting Direction | RIGHT |
| Head Length (Metric) | 6.5 |
| Cutting Diameter (Inch) | 0.261 |
| Long Description | SOLID CARBIDE QUARTER ROUND CUTTER MUC-N.VR.10,0.20°.Z4.R1,5.KLG8 TI1100 |
| Short Description | MUC-N.VR.10,0.20°.Z4.R1,5.KLG8 TI1100 |
| Product Line | WNT_PERFORMANCE |
| Nominal Size (Metric) | 8.00 |
| Depth of Cut Maximum (Metric) | 4.00 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 20 |
| Cutting diameter maximum (inch) | 0.394 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.71 |
| Overall Length (Decimal Inch) | 1.059 |
| Overall Length (mm) | 2.69 cm |
| Base Material | VHM |
| Item Weight (lbs) | 0.066 |
| Item Height (Inches) | 0.71 |
| Protruding Length (Metric) | 13.00 |
| Cutting Diameter (mm) | 6.63 mm |
| Peripheral Effective Cutting Edge Count | 4 |
| Drive Size (Metric) | 8 |
| Item Length (Inches) | 1.93 |
| Cutting diameter maximum (Metric) | 10.00 |
| Profile Radius (Metric) | 1.5 |
