Ceratizit
5294398000

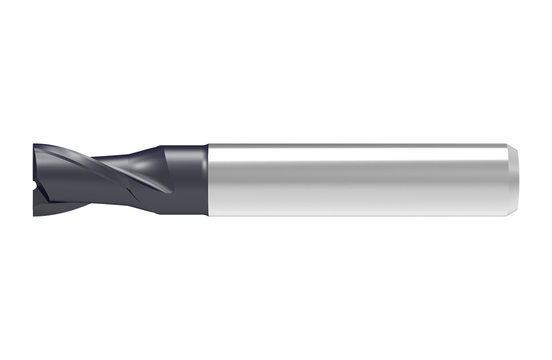

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.5 |
|---|---|
| Diameter (Metric) | 0.8 |
| Diameter (Inch) | 0.04 |
| Length Of Cut (Inch) | 0.08 |
| Material | VHM |
| Overall Length (Metric) | 38 |
| Coating/Finish | DPX72S |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.11 |
| Shank Length (Metric) | 28 |
| Max. Cutting Depth (Metric) | 2 |
| Connection Diameter (Decimal) | 0.12 |
| Connection Diameter (Metric) | 3 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Length Type | Short |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.4 |
| Protruding Length (Metric) | 10 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 14 degrees |
| Base Item Number | #5294398000 |
| Flute Helix Angle | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
