Ceratizit
5294513700

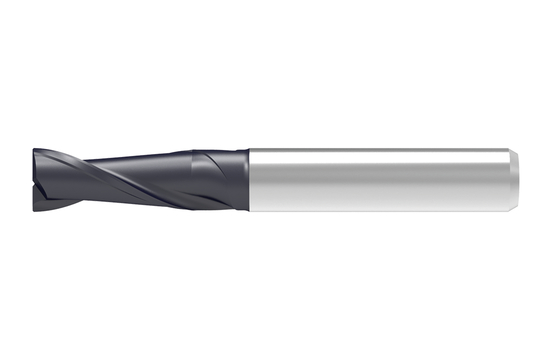

CARBIDE END MILL WITH EDGE BREAK
Specifications
| Length Of Cut (Inch) | 1.03 |
|---|---|
| Helix Angle | 30 |
| Material | VHM |
| Cutting Diameter (Inch) | 0.54 |
| Overall Length (Inch) | 3.31 |
| Cutting Diameter (Metric) | 13.7 |
| Overall Length (Metric) | 84 |
| Coating/Finish | DPX72S |
| Unit Of Measure | Imperial |
| Neck Diameter | 0.53 Inch |
| Overall Length 2 (Inch) | 4.06 |
| Cutting Direction | Right |
| Neck Diameter (Metric) | 13.3 |
| Connection Diameter (Decimal) | 0.56 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Head Length (Decimal) | 1.38 |
| Head Length (Metric) | 35 |
| Length (Decimal) | 4.06 |
| Width (Decimal) | 0.98 |
| Height (Decimal) | 0.98 |
| Length Type | Long |
| Protruding Length (Decimal) | 1.54 |
| Protruding Length (Metric) | 39 |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Flute Helix Angle | 30 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 26 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 14 degrees |
| Chamfer Width | 0.01 Inch |
| Corner Chamfer Width (Metric) | 0.2 |
| Base Item Number | #5294513700 |
| Maximum Depth Of Cut (Metric) | 26 |
| Neck Diameter (Inch) | 0.524 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 26 |
| Shank Length (Inch) | 1.772 |
| Connection diameter machine side (inch) | 0.551 |
| Item Width (Inches) | 0.98 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.307 |
| Connection diameter machine side (mm) | 14 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.358 |
| Item Height (Inches) | 0.98 |
| Cutting Diameter (mm) | 1.37 cm |
| Item Length (Inches) | 4.06 |
| Head Length (Inch) | 1.378 |
| Shank Length (mm) | 45 |
