Ceratizit

5303004205

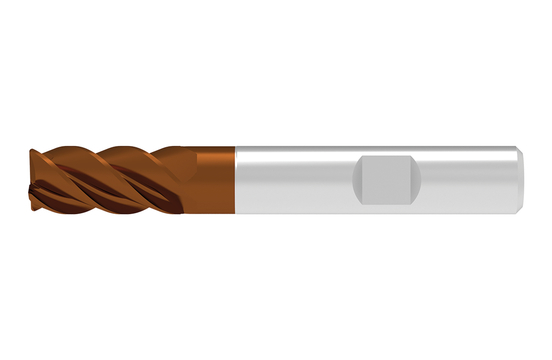

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)0.44
Helix Angle35_38 degrees
MaterialVHM
Cutting Diameter (Inch)0.16
Corner Radius (Inch)0.02
Overall Length (Inch)2.25
Cutting Diameter (Metric)4
Overall Length (Metric)57
Coating/FinishDPA52S
Corner Radius (Metric)1
Unit Of MeasureImperial
Corner Radius0.02 Inch
Neck Diameter0.15 Inch
Overall Length 2 (Inch)2.56
Cutting DirectionRight
Neck Diameter (Metric)3.8
Connection Diameter (Decimal)0.24
Connection Diameter (Metric)6
Connection Diameter ToleranceH5
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceF8
Head Length (Decimal)0.67
Head Length (Metric)17
Length (Decimal)2.56
Width (Decimal)0.51
Height (Decimal)0.51
Length TypeLong
Protruding Length (Decimal)0.83
Protruding Length (Metric)21
Shank Length (Decimal)1.42
Shank Length (Metric)36
Flute Helix Angle35_38 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)11
Peripheral Effective Cutting Edge Count4
Profile Radius (Decimal)0.04
Profile Radius (Metric)1
Rake Angle Axial7 degrees
Base Item Number#5303004205
Maximum Depth Of Cut (Metric)11
Neck Diameter (Inch)0.15
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)11
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Profile Radius 3 (Metric)1
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)2.244
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.062
Item Height (Inches)0.51
Cutting Diameter (mm)4.00 mm
Item Length (Inches)2.56
Head Length (Inch)0.669
Shank Length (mm)36
