Ceratizit
5358108200

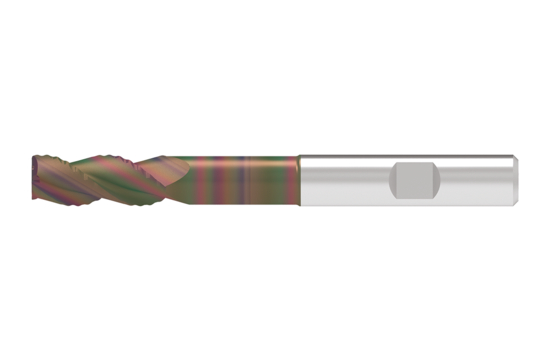

HPC SOLID CARBIDE ROUGH MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.15 |
|---|---|
| Diameter (Metric) | 8 |
| Diameter (Inch) | 0.32 |
| Length Of Cut (Inch) | 0.83 |
| Material | VHM |
| Overall Length (Metric) | 80 |
| Coating/Finish | DLC |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Helix Angle | 38 - 40 - 43 degrees |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Max. Cutting Depth (Metric) | 21 |
| Neck Diameter (Decimal) | 0.31 |
| Neck Diameter (Metric) | 7.7 |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | IC Spiral |
| Cutting Diameter Tolerance | D11 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.58 |
| Head Length (Metric) | 40 |
| Length Type | Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Corner Chamfer Width (Decimal) | 0.02 |
| Corner Chamfer Width (Metric) | 0.4 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5358108200 |
| Flute Helix Angle | 38_40_43 |
| Neck Diameter (Inch) | 0.31 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
