Ceratizit
5359014000

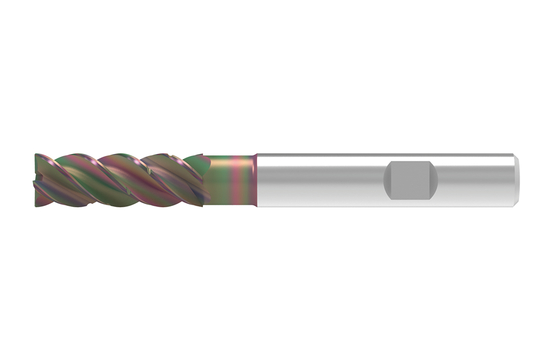

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.14 |
|---|---|
| Diameter (Metric) | 14 |
| Diameter (Inch) | 0.56 |
| Length Of Cut (Inch) | 1.7 |
| Material | VHM |
| Overall Length (Metric) | 105 |
| Coating/Finish | DLC |
| Overall Length 2 (Inch) | 4.57 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Metric) | 43 |
| Neck Diameter (Decimal) | 0.52 |
| Neck Diameter (Metric) | 13 |
| Connection Diameter (Decimal) | 0.56 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 2.21 |
| Head Length (Metric) | 56 |
| Length Type | Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 4.57 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 2.37 |
| Protruding Length (Metric) | 60 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.2 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 8 degrees |
| Base Item Number | #5359014000 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.52 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
