Ceratizit
5359316430

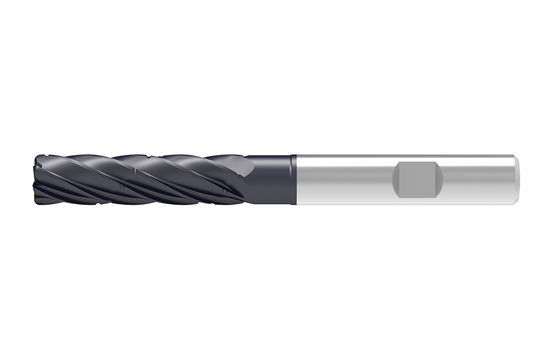

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 3.19 |
|---|---|
| Helix Angle | 35_36 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.63 |
| Corner Radius (Inch) | 0.12 |
| Overall Length (Inch) | 5.52 |
| Cutting Diameter (Metric) | 16 |
| Overall Length (Metric) | 140 |
| Coating/Finish | DPX72S |
| Corner Radius (Metric) | 3 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.12 Inch |
| Overall Length 2 (Inch) | 5.87 |
| Cutting Direction | Right |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Length (Decimal) | 5.87 |
| Width (Decimal) | 0.98 |
| Height (Decimal) | 0.98 |
| Length Type | Extra Long |
| Protruding Length (Decimal) | 3.63 |
| Protruding Length (Metric) | 92 |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Corner Radius Tolerance (Decimal) | ±0.01 |
| Corner Radius Tolerance (Metric) | ±0.05 |
| Flute Helix Angle | 35_36 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 81 |
| Peripheral Effective Cutting Edge Count | 5 |
| Rake Angle Axial | 9 degrees |
| Base Item Number | #5359316430 |
| Maximum Depth Of Cut (Metric) | 81 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 81 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 0.63 |
| Item Width (Inches) | 0.98 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 5.512 |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.766 |
| Item Height (Inches) | 0.98 |
| Cutting Diameter (mm) | 1.60 cm |
| Item Length (Inches) | 5.87 |
| Shank Length (mm) | 48 |
