IBC Member Market

Ceratizit

5359520002

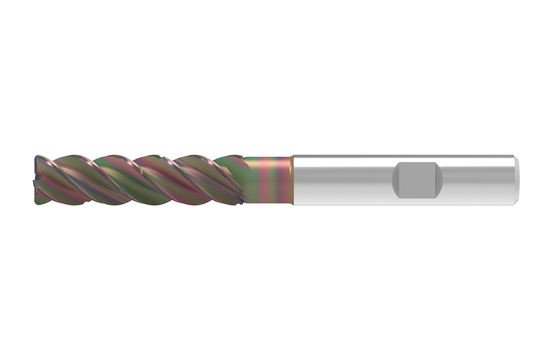

CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)3.23
Helix Angle45 degrees
MaterialVHM
Cutting Diameter (Inch)0.79
Corner Radius (Inch)0.01
Overall Length (Inch)6.07
Cutting Diameter (Metric)20
Overall Length (Metric)154
Coating/FinishDLC
Corner Radius (Metric)1
Unit Of MeasureImperial
Corner Radius0.01 Inch
Neck Diameter0.77 Inch
Overall Length 2 (Inch)8.7
Cutting DirectionRight
Neck Diameter (Metric)19.5
Connection Diameter (Decimal)0.79
Connection Diameter (Metric)20
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceE8
Head Length (Decimal)3.94
Head Length (Metric)100
Length (Decimal)8.7
Width (Decimal)0.71
Height (Decimal)0.71
Length TypeExtra Long
Protruding Length (Decimal)4.1
Protruding Length (Metric)104
Shank Length (Decimal)1.97
Shank Length (Metric)50
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.05
Flute Helix Angle45 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)82
Peripheral Effective Cutting Edge Count4
Rake Angle Axial8 degrees
Base Item Number#5359520002
Maximum Depth Of Cut (Metric)82
Neck Diameter (Inch)0.768
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)82
Shank Length (Inch)1.969
Connection diameter machine side (inch)0.787
Item Width (Inches)0.71
Connection type machine sideCYL
Overall Length (Decimal Inch)6.063
Connection diameter machine side (mm)20
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)1.162
Item Height (Inches)0.71
Cutting Diameter (mm)2.00 cm
Item Length (Inches)8.7
Head Length (Inch)3.937
Shank Length (mm)50
