Ceratizit
5359712000

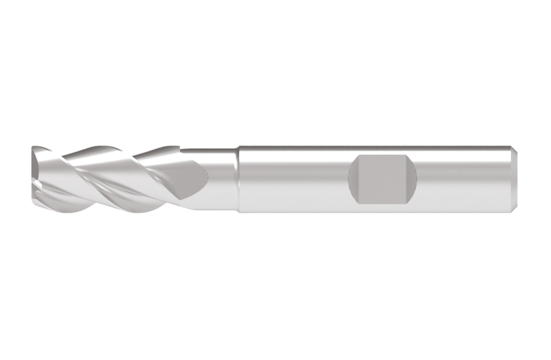

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.27 |
|---|---|
| Diameter (Metric) | 12 |
| Diameter (Inch) | 0.48 |
| Length Of Cut (Inch) | 1.03 |
| Material | VHM |
| Overall Length (Metric) | 83 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Helix Angle | 43 - 44 - 45 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Metric) | 26 |
| Neck Diameter (Decimal) | 0.44 |
| Neck Diameter (Metric) | 11 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.42 |
| Head Length (Metric) | 36 |
| Length Type | Short |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.5 |
| Protruding Length (Metric) | 380 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.2 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 12 degrees |
| Base Item Number | #5359712000 |
| Flute Helix Angle | 43_44_45 |
| Neck Diameter (Inch) | 0.44 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
