Ceratizit
5359917600

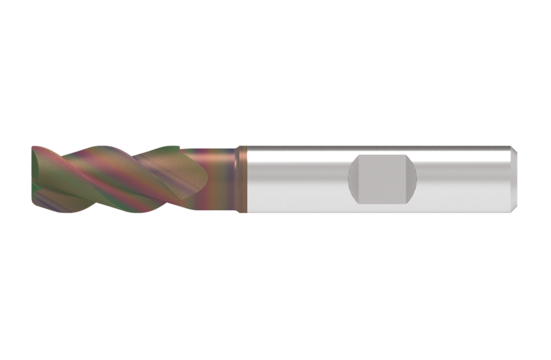

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.63 |
|---|---|
| Diameter (Metric) | 17.5 |
| Diameter (Inch) | 0.69 |
| Length Of Cut (Inch) | 1.42 |
| Material | VHM |
| Overall Length (Metric) | 92 |
| Coating/Finish | DLC |
| Overall Length 2 (Inch) | 4.45 |
| Cutting Direction | Right |
| Helix Angle | 43 - 44 - 45 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Metric) | 36 |
| Neck Diameter (Decimal) | 0.65 |
| Neck Diameter (Metric) | 16.5 |
| Connection Diameter (Decimal) | 0.71 |
| Connection Diameter (Metric) | 18 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.66 |
| Head Length (Metric) | 42 |
| Length Type | Short |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 4.45 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.2 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 12 degrees |
| Base Item Number | #5359917600 |
| Flute Helix Angle | 43_44_45 |
| Neck Diameter (Inch) | 0.65 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
