Ceratizit
53605040

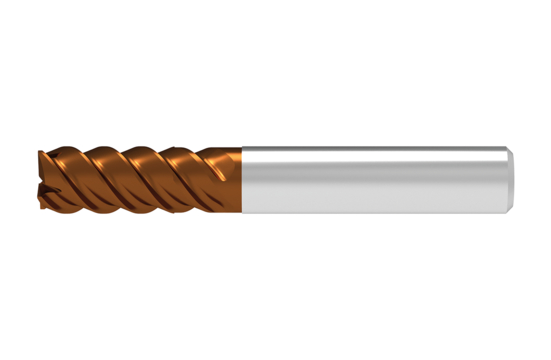

CARBIDE END MILL WITH EDGE BREAK
Specifications
| Helix Angle | 50 |
|---|---|
| Material | VHM |
| Cutting Diameter (Inch) | 0.16 |
| Corner Radius (Inch) | 0.01 |
| Overall Length (Inch) | 2.37 |
| Cutting Diameter (Metric) | 4 |
| Length Of Cut (Metric) | 8 |
| Overall Length (Metric) | 60 |
| Coating/Finish | DPX62U |
| Corner Radius (Metric) | 1 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 3.23 |
| Cutting Direction | Right |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Length (Decimal) | 3.23 |
| Width (Decimal) | 0.51 |
| Height (Decimal) | 0.51 |
| Length Type | Long |
| Protruding Length (Decimal) | 0.95 |
| Protruding Length (Metric) | 24 |
| Shank Length (Decimal) | 1.97 |
| Shank Length (Metric) | 50 |
| Flute Helix Angle | 50 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.32 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | -15 degrees |
| Base Item Number | #53605040 |
| Maximum Depth Of Cut (Inch) | 0.32 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 8 |
| Shank Length (Inch) | 1.969 |
| Connection diameter machine side (inch) | 0.236 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.362 |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.068 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 4.00 mm |
| Item Length (Inches) | 3.23 |
| Shank Length (mm) | 50 |
