Ceratizit
5360910400

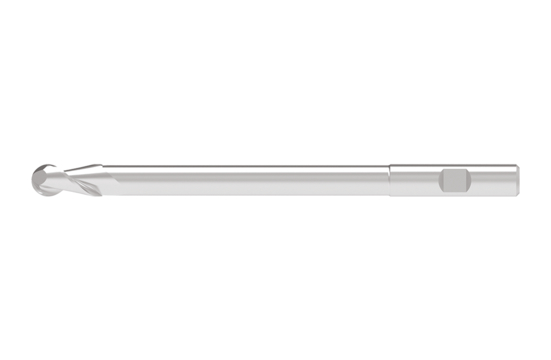

SOLID CARBIDE BALL NOSED MILLING CUTTER
Specifications
| Coating/Finish | Blank |
|---|---|
| Diameter (Metric) | 10 |
| Overall Length (Inch) | 5.95 |
| Length Of Cut (Inch) | 0.99 |
| Overall Length (Metric) | 151 |
| Cutting Direction | Right |
| Material | VHM |
| Length Of Cut (Metric) | 25 |
| Diameter (Inch) | 0.4 |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | F8 |
| Head Length (Decimal) | 4.34 |
| Head Length (Metric) | 110 |
| Length Type | Extra Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 6.06 |
| Width (Decimal) | 0.71 |
| Neck Diameter (Decimal) | 0.37 |
| Neck Diameter (Metric) | 9.4 |
| Protruding Length (Decimal) | 4.37 |
| Protruding Length (Metric) | 111 |
| Shank Length (Metric) | 40 |
| Shank Length (Decimal) | 1.58 |
| Flute Helix Angle | 45 degrees |
| Overall Length 2 (Decimal) | 6.06 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 13 degrees |
| Base Item Number | #5360910400 |
| Neck Diameter (Inch) | 0.37 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 25 |
| Shank Length (Inch) | 1.575 |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.362 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 6.06 |
| Head Length (Inch) | 4.331 |
| Shank Length (mm) | 40 |
| Cutting Diameter Tolerance | f8 |
| Cutting Diameter (Inch) | 0.394 |
