Ceratizit
5361102700

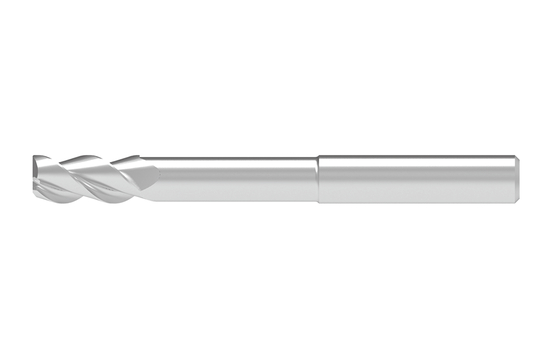

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.29 |
|---|---|
| Diameter (Metric) | 2.5 |
| Diameter (Inch) | 0.1 |
| Length Of Cut (Inch) | 0.26 |
| Material | VHM |
| Overall Length (Metric) | 58 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Max. Cutting Depth (Metric) | 6.5 |
| Neck Diameter (Decimal) | 0.10 |
| Neck Diameter (Metric) | 2.3 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.5 |
| Head Length (Metric) | 12.5 |
| Length Type | Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.87 |
| Protruding Length (Metric) | 22 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.05 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #5361102700 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
