Ceratizit
5361511200

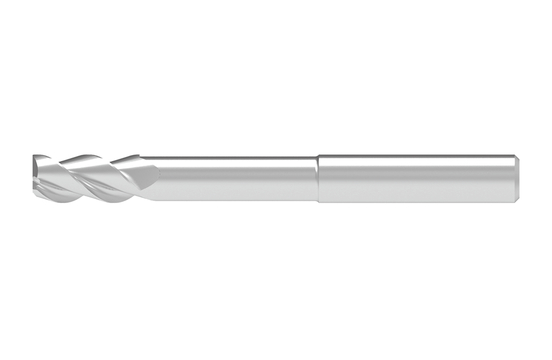

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.3 |
|---|---|
| Diameter (Metric) | 11 |
| Diameter (Inch) | 0.44 |
| Length Of Cut (Inch) | 1.22 |
| Material | VHM |
| Overall Length (Metric) | 109 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 4.92 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Metric) | 31 |
| Neck Diameter (Decimal) | 0.42 |
| Neck Diameter (Metric) | 10.6 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 2.37 |
| Head Length (Metric) | 60 |
| Length Type | Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 4.92 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 2.52 |
| Protruding Length (Metric) | 64 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #5361511200 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.42 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
