Ceratizit
5361613900

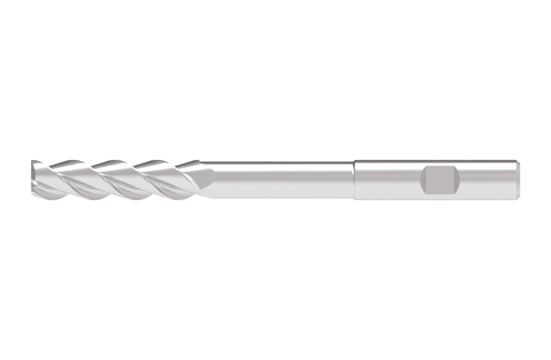

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 6.34 |
|---|---|
| Diameter (Metric) | 13.5 |
| Diameter (Inch) | 0.54 |
| Length Of Cut (Inch) | 2.25 |
| Material | VHM |
| Overall Length (Metric) | 161 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 6.5 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Metric) | 57 |
| Neck Diameter (Decimal) | 0.52 |
| Neck Diameter (Metric) | 13.1 |
| Connection Diameter (Decimal) | 0.56 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 4.41 |
| Head Length (Metric) | 112 |
| Length Type | Extra Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 6.5 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 4.57 |
| Protruding Length (Metric) | 116 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #5361613900 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.52 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
