Ceratizit
5361809900

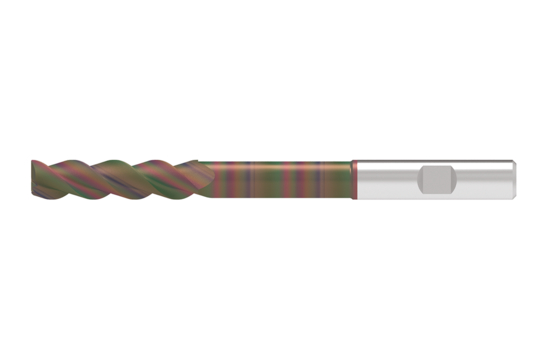

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.89 |
|---|---|
| Diameter (Metric) | 9.5 |
| Diameter (Inch) | 0.38 |
| Length Of Cut (Inch) | 1.62 |
| Material | VHM |
| Overall Length (Metric) | 124 |
| Coating/Finish | DLC |
| Overall Length 2 (Inch) | 5 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Max. Cutting Depth (Metric) | 41 |
| Neck Diameter (Decimal) | 0.37 |
| Neck Diameter (Metric) | 9.2 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 3.15 |
| Head Length (Metric) | 80 |
| Length Type | Extra Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 3.31 |
| Protruding Length (Metric) | 84 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #5361809900 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.37 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
