Ceratizit
5362016600

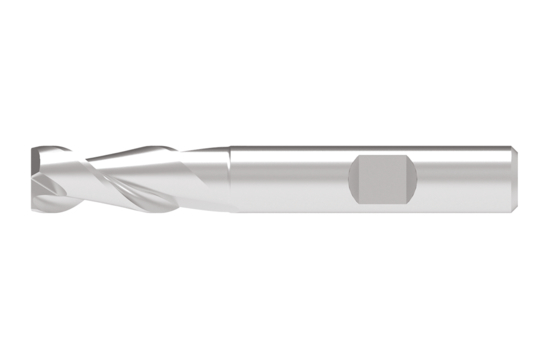

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.18 |
|---|---|
| Diameter (Metric) | 16.5 |
| Diameter (Inch) | 0.65 |
| Length Of Cut (Inch) | 1.5 |
| Material | VHM |
| Overall Length (Metric) | 106 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 4.45 |
| Cutting Direction | Right |
| Helix Angle | 50 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Metric) | 38 |
| Neck Diameter (Decimal) | 0.63 |
| Neck Diameter (Metric) | 16 |
| Connection Diameter (Decimal) | 0.71 |
| Connection Diameter (Metric) | 18 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 2.13 |
| Head Length (Metric) | 54 |
| Length Type | Short |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 4.45 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 2.29 |
| Protruding Length (Metric) | 580 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.1 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 8 degrees |
| Base Item Number | #5362016600 |
| Flute Helix Angle | 50 |
| Neck Diameter (Inch) | 0.63 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
