Ceratizit
5363306800

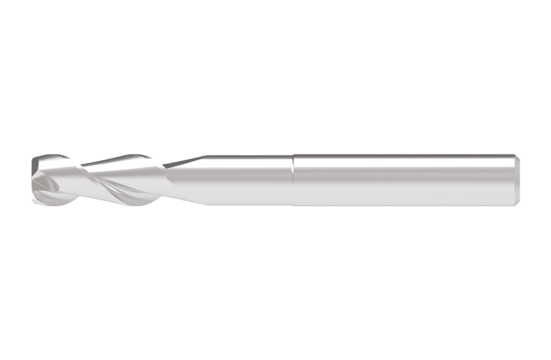

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.15 |
|---|---|
| Diameter (Metric) | 6.5 |
| Diameter (Inch) | 0.26 |
| Length Of Cut (Inch) | 0.83 |
| Material | K10F |
| Overall Length (Metric) | 80 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Helix Angle | 50 degrees |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Max. Cutting Depth (Metric) | 21 |
| Neck Diameter (Decimal) | 0.25 |
| Neck Diameter (Metric) | 6.2 |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.58 |
| Head Length (Metric) | 40 |
| Length Type | Medium |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 8 degrees |
| Base Item Number | #5363306800 |
| Flute Helix Angle | 50 |
| Neck Diameter (Inch) | 0.25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
