Ceratizit

5371508115

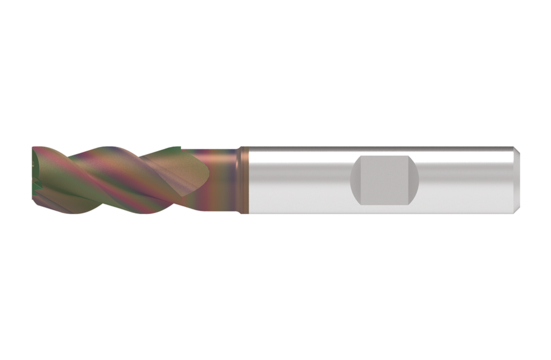

CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)0.67
Helix Angle45 degrees
MaterialVHM
Cutting Diameter (Inch)0.32
Corner Radius (Inch)0.06
Overall Length (Inch)2.52
Cutting Diameter (Metric)8
Overall Length (Metric)64
Coating/FinishDLC
Corner Radius (Metric)2
Unit Of MeasureImperial
Corner Radius0.06 Inch
Neck Diameter0.30 Inch
Overall Length 2 (Inch)2.8
Cutting DirectionRight
Neck Diameter (Metric)7.4
Connection Diameter (Decimal)0.32
Connection Diameter (Metric)8
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantIC
Cutting Diameter ToleranceH6
Head Length (Decimal)0.95
Head Length (Metric)24
Length (Decimal)2.8
Width (Decimal)0.71
Height (Decimal)0.71
Length TypeShort
Protruding Length (Decimal)1.11
Protruding Length (Metric)28
Shank Length (Decimal)1.42
Shank Length (Metric)36
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.05
Flute Helix Angle45 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)17
Peripheral Effective Cutting Edge Count3
Rake Angle Axial7 degrees
Base Item Number#5371508115
Maximum Depth Of Cut (Metric)17
Neck Diameter (Inch)0.291
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)17
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.315
Item Width (Inches)0.71
Connection type machine sideCYL
Overall Length (Decimal Inch)2.52
Connection diameter machine side (mm)8
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.109
Item Height (Inches)0.71
Cutting Diameter (mm)8.00 mm
Item Length (Inches)2.8
Head Length (Inch)0.945
Shank Length (mm)36
