Ceratizit
5380601607

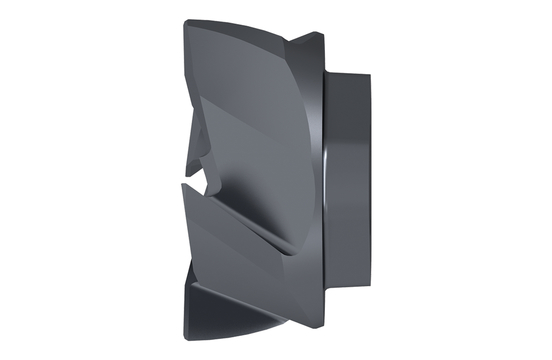

SOLID CARBIDE TORUS MILLING CUTTER
Specifications
| Corner Radius (Inch) | 0.012 |
|---|---|
| Material | 12587862 |
| Coating/Finish | CTPX225 |
| Helix Angle | 35 |
| Neck Diameter (Inch) | 0.539 |
| Cutting Direction | RIGHT |
| Cutting Diameter (Inch) | 0.630 |
| Neck Diameter (Metric) | 13.7 |
| Corner Radius (Metric) | 0.3 |
| Long Description | SOLID CARBIDE TORUS MILLING CUTTER EL16.E16.Z04-07 CTPX225 |
| Short Description | EL16.E16.Z04-07 CTPX225 |
| Product Line | WNT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 4.5 |
| Flute Helix Angle | 35 |
| Coolant | IC |
| Item Width (Inches) | 1.65 |
| Overall Length (Decimal Inch) | 1.65 |
| Base Material | VHM |
| Item Weight (lbs) | 0.039 |
| Item Height (Inches) | 1.14 |
| Protruding Length (Metric) | 7.00 |
| Cutting Diameter (mm) | 1.60 cm |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 |
| Item Length (Inches) | 1.65 |
