Ceratizit
54014070

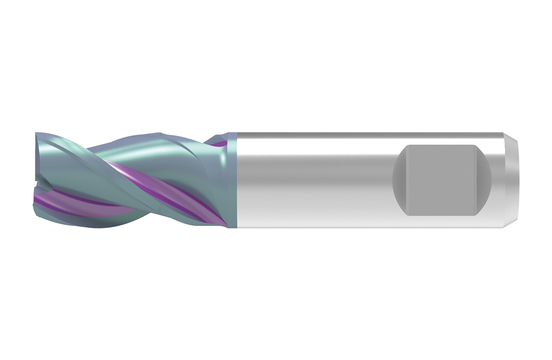

HSSE THROW-AWAY MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.66 |
|---|---|
| Diameter (Metric) | 7 |
| Diameter (Inch) | 0.28 |
| Length Of Cut (Metric) | 10 |
| Material | HSSE CO8 |
| Overall Length (Metric) | 42 |
| Coating/Finish | TI100PRO |
| Overall Length 2 (Inch) | 2.87 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.11 |
| Shank Length (Metric) | 28 |
| Max. Cutting Depth (Decimal) | 0.4 |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.4 |
| Head Length (Metric) | 10 |
| Length Type | Short |
| Height (Decimal) | 0.55 |
| Length (Decimal) | 2.87 |
| Width (Decimal) | 0.55 |
| Protruding Length (Decimal) | 0.56 |
| Protruding Length (Metric) | 14 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 12 degrees |
| Base Item Number | 54014070 |
| Flute Helix Angle | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
