Ceratizit
54020200

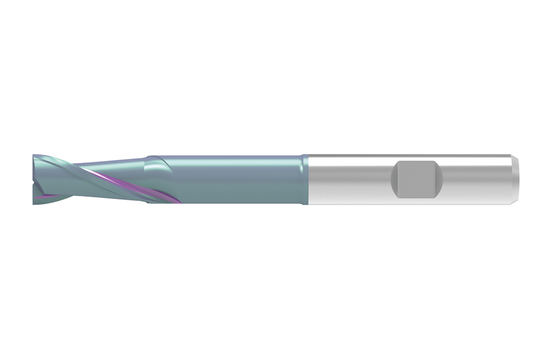

HSSE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 5.56 |
|---|---|
| Diameter (Metric) | 20 |
| Diameter (Inch) | 0.79 |
| Length Of Cut (Metric) | 38 |
| Material | HSSE CO8 |
| Overall Length (Metric) | 141 |
| Coating/Finish | TI100PRO |
| Overall Length 2 (Inch) | 5.67 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 2.05 |
| Shank Length (Metric) | 52 |
| Max. Cutting Depth (Decimal) | 1.5 |
| Neck Diameter (Decimal) | 0.75 |
| Neck Diameter (Metric) | 19 |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 3.51 |
| Head Length (Metric) | 89 |
| Length Type | Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 5.67 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 3.59 |
| Protruding Length (Metric) | 91 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | 54020200 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.75 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
