Ceratizit
54022100

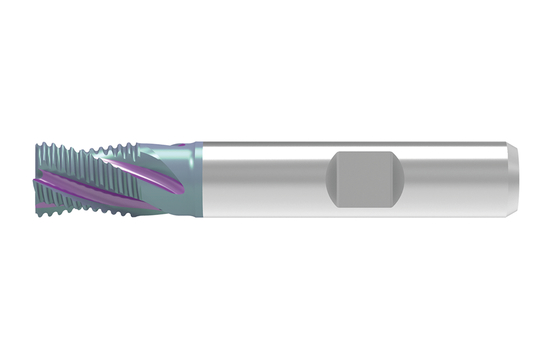

HSSE ROUGH MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.48 |
|---|---|
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.4 |
| Length Of Cut (Metric) | 13 |
| Material | HSSE CO8F |
| Overall Length (Metric) | 63 |
| Coating/Finish | TI100PRO |
| Overall Length 2 (Inch) | 3.7 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.66 |
| Shank Length (Metric) | 42 |
| Max. Cutting Depth (Decimal) | 0.52 |
| Neck Diameter (Decimal) | 0.38 |
| Neck Diameter (Metric) | 9.5 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | K12 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.83 |
| Head Length (Metric) | 21 |
| Length Type | Extra Short |
| Height (Decimal) | 0.55 |
| Length (Decimal) | 3.7 |
| Width (Decimal) | 0.55 |
| Protruding Length (Decimal) | 0.91 |
| Protruding Length (Metric) | 23 |
| Corner Chamfer Width (Decimal) | 0.02 |
| Corner Chamfer Width (Metric) | 0.45 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | 54022100 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.38 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
