Ceratizit
54029110

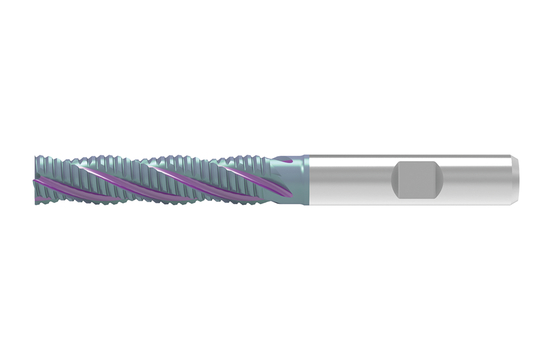

HSSE ROUGHING-FINISHING MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.016 |
|---|---|
| Short Description | NF.SS.11,0.R.30°.Z4.HB.L TI100PRO |
| Long Description | HSSE ROUGHING-FINISHING MILLING CUTTER NF.SS.11,0.R.30°.Z4.HB.L TI100PRO |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 45 |
| Shank Length (Inch) | 1.85 |
| Connection diameter machine side (inch) | 0.472 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 30 |
| Coolant | WITHOUT IC |
| Item Width (Inches) | 0.63 |
| Connection type machine side | CYL |
| Overall Length (mm) | 10.2 cm |
| Connection diameter machine side (mm) | 12 |
| Connection diameter machine side tolerance | H6 |
| Base Material | HSSE CO5 |
| Item Weight (lbs) | 0.184 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.63 |
| Protruding Length (Metric) | 57 |
| Cutting Diameter (mm) | 1.10 cm |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 12 |
| Item Length (Inches) | 4.13 |
| Neck Diameter (Metric) | 10.5 |
| Coating | TI100PRO |
| Head Length (Inch) | 2.087 |
| Shank Length (mm) | 47 |
| Cutting Diameter Tolerance | k12 |
| Head Length (Metric) | 53 |
| Neck Diameter (Inch) | 0.413 |
| Cutting Diameter (Inch) | 0.433 |
