Ceratizit
54032100

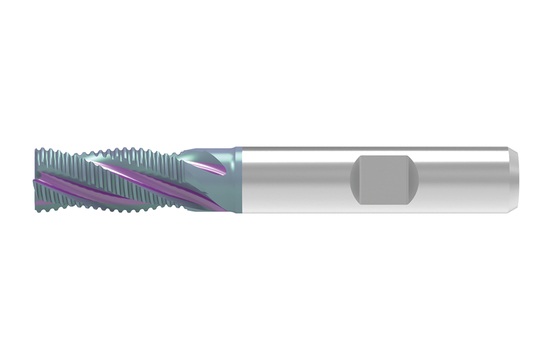

HSS-PM ROUGHING END MILL
Specifications
| Length Of Cut (Metric) | 22 |
|---|---|
| Overall Length (Inch) | 2.84 |
| Overall Length (Metric) | 72 |
| Material | Powder Steel |
| Coating/Finish | TI100PRO |
| Diameter (Metric) | 10 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.4 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 4.06 |
| Helix Angle | 30 degrees |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | K12 |
| Head Length (Decimal) | 1.19 |
| Head Length (Metric) | 30 |
| Length Type | Short |
| Length (Decimal) | 4.06 |
| Width (Decimal) | 0.55 |
| Height (Decimal) | 0.55 |
| Neck Diameter (Decimal) | 0.38 |
| Protruding Length (Decimal) | 1.26 |
| Protruding Length (Metric) | 32 |
| Shank Length (Decimal) | 1.66 |
| Shank Length (Metric) | 42 |
| Corner Chamfer Width (Decimal) | 0.02 |
| Corner Chamfer Width (Metric) | 0.45 |
| Depth of Cut Maximum (Decimal) | 0.87 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4 |
| Flute Helix Angle | 30 degrees |
| Rake Angle Axial | 10 degrees |
| Base Item Number | 54032100 |
| Neck Diameter (Inch) | 0.374 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 22 |
| Shank Length (Inch) | 1.654 |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 0.55 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.835 |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | POWDER STEEL |
| Item Weight (lbs) | 0.101 |
| Item Height (Inches) | 0.55 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 4.06 |
| Head Length (Inch) | 1.181 |
| Shank Length (mm) | 42 |
| Cutting Diameter (Inch) | 0.394 |
