Ceratizit
54041070

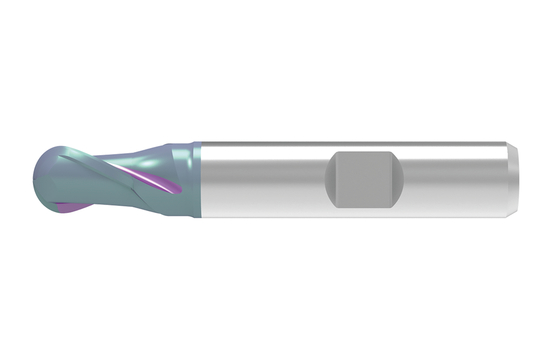

HSSE RADIUS MILLING CUTTER
Specifications
| Coating/Finish | TI100PRO |
|---|---|
| Diameter (Metric) | 7 |
| Overall Length (Inch) | 2.37 |
| Length Of Cut (Inch) | 0.4 |
| Overall Length (Metric) | 60 |
| Cutting Direction | Right |
| Material | HSSE CO8 |
| Length Of Cut (Metric) | 10 |
| Diameter (Inch) | 0.28 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | H10 |
| Head Length (Decimal) | 0.63 |
| Head Length (Metric) | 16 |
| Length Type | Extra Short |
| Height (Decimal) | 0.55 |
| Length (Decimal) | 3.58 |
| Width (Decimal) | 0.55 |
| Neck Diameter (Decimal) | 0.26 |
| Neck Diameter (Metric) | 6.5 |
| Protruding Length (Decimal) | 0.79 |
| Protruding Length (Metric) | 20 |
| Shank Length (Metric) | 42 |
| Shank Length (Decimal) | 1.66 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 3.58 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | 54041070 |
| Neck Diameter (Inch) | 0.26 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 10 |
| Shank Length (Inch) | 1.654 |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 0.55 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | HSSE CO8 |
| Item Weight (lbs) | 0.079 |
| Item Height (Inches) | 0.55 |
| Cutting Diameter (mm) | 7.00 mm |
| Item Length (Inches) | 3.58 |
| Head Length (Inch) | 0.63 |
| Shank Length (mm) | 42 |
| Cutting Diameter Tolerance | h10 |
| Cutting Diameter (Inch) | 0.276 |
