Ceratizit
5405410020

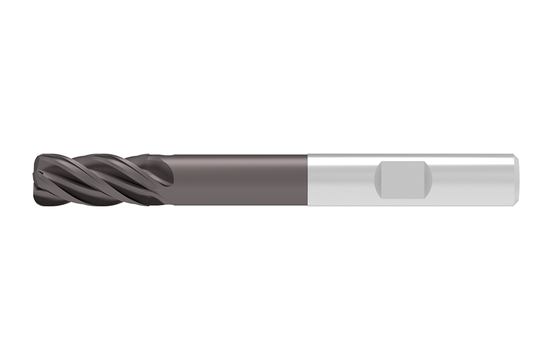

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 0.87 |
|---|---|
| Helix Angle | 35_38 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.4 |
| Corner Radius (Inch) | 0.08 |
| Overall Length (Inch) | 3.71 |
| Cutting Diameter (Metric) | 10 |
| Overall Length (Metric) | 94 |
| Coating/Finish | TI1000 |
| Corner Radius (Metric) | 2 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.08 Inch |
| Neck Diameter | 0.39 Inch |
| Overall Length 2 (Inch) | 4.49 |
| Cutting Direction | Right |
| Neck Diameter (Metric) | 9.7 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H10 |
| Head Length (Decimal) | 1.97 |
| Head Length (Metric) | 50 |
| Length (Decimal) | 4.49 |
| Width (Decimal) | 0.71 |
| Height (Decimal) | 0.71 |
| Length Type | Extra Long |
| Protruding Length (Decimal) | 2.13 |
| Protruding Length (Metric) | 54 |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Flute Helix Angle | 35_38 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 22 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5405410020 |
| Maximum Depth Of Cut (Metric) | 22 |
| Neck Diameter (Inch) | 0.382 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 22 |
| Shank Length (Inch) | 1.575 |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.701 |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.238 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 4.49 |
| Head Length (Inch) | 1.969 |
| Shank Length (mm) | 40 |
