Ceratizit
54056080

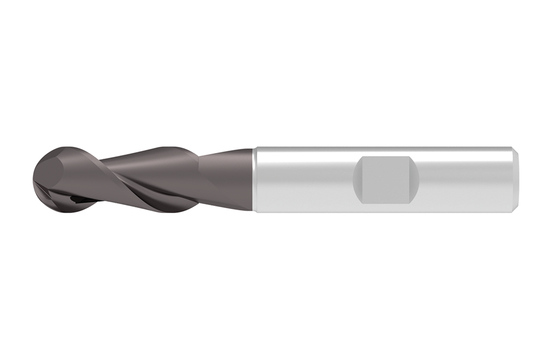

HPC SOLID CARBIDE BALL NOSED CUTTER
Specifications
| Coating/Finish | TI1000 |
|---|---|
| Diameter (Metric) | 8 |
| Overall Length (Inch) | 2.48 |
| Length Of Cut (Inch) | 0.75 |
| Overall Length (Metric) | 63 |
| Cutting Direction | Right |
| Material | VHM |
| Length Of Cut (Metric) | 19 |
| Diameter (Inch) | 0.32 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | H10 |
| Head Length (Decimal) | 1.07 |
| Head Length (Metric) | 27 |
| Length Type | Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 3.23 |
| Width (Decimal) | 0.51 |
| Neck Diameter (Decimal) | 0.31 |
| Neck Diameter (Metric) | 7.7 |
| Protruding Length (Decimal) | 1.07 |
| Protruding Length (Metric) | 27 |
| Shank Length (Metric) | 36 |
| Shank Length (Decimal) | 1.42 |
| Flute Helix Angle | 35_38 degrees |
| Overall Length 2 (Decimal) | 3.23 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #54056080 |
| Neck Diameter (Inch) | 0.31 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 19 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.315 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 8 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.099 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 8.00 mm |
| Item Length (Inches) | 3.23 |
| Head Length (Inch) | 1.063 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | h10 |
| Cutting Diameter (Inch) | 0.315 |
