Ceratizit
54590055

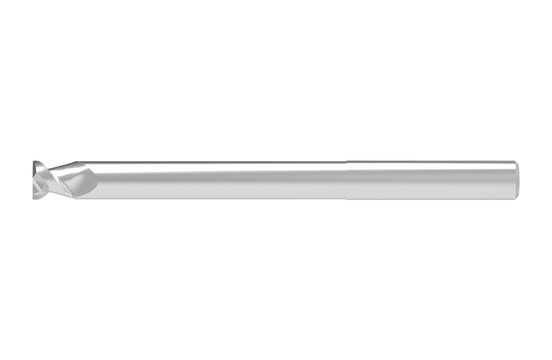

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.47 |
|---|---|
| Diameter (Metric) | 5 |
| Diameter (Inch) | 0.2 |
| Length Of Cut (Metric) | 5.5 |
| Material | K10F |
| Overall Length (Metric) | 88 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 4.33 |
| Cutting Direction | Right |
| Helix Angle | 55 degrees |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Max. Cutting Depth (Decimal) | 0.22 |
| Neck Diameter (Decimal) | 0.19 |
| Neck Diameter (Metric) | 4.8 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.58 |
| Head Length (Metric) | 40 |
| Length Type | Extra Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 4.33 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 2.05 |
| Protruding Length (Metric) | 52 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #54590055 |
| Flute Helix Angle | 55 |
| Neck Diameter (Inch) | 0.19 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
