Ceratizit
54591138

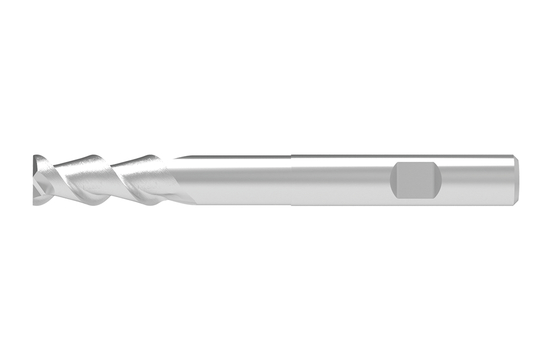

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.69 |
|---|---|
| Diameter (Metric) | 13.7 |
| Diameter (Inch) | 0.54 |
| Length Of Cut (Metric) | 36 |
| Material | K10F |
| Overall Length (Metric) | 119 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 5.04 |
| Cutting Direction | Right |
| Helix Angle | 55 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Decimal) | 1.42 |
| Neck Diameter (Decimal) | 0.53 |
| Neck Diameter (Metric) | 13.3 |
| Connection Diameter (Decimal) | 0.56 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 2.76 |
| Head Length (Metric) | 70 |
| Length Type | Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 5.04 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 2.92 |
| Protruding Length (Metric) | 74 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #54591138 |
| Flute Helix Angle | 55 |
| Neck Diameter (Inch) | 0.53 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
