IBC Member Market

Ceratizit

54595204

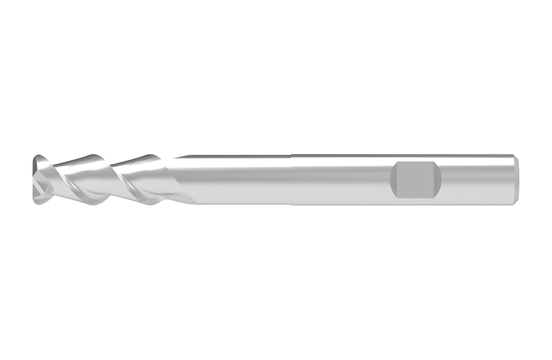

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Helix Angle55 degrees
MaterialK10F
Cutting Diameter (Inch)0.79
Corner Radius (Inch)0.1
Overall Length (Inch)6.07
Cutting Diameter (Metric)20
Length Of Cut (Metric)52
Overall Length (Metric)154
Coating/FinishBLANK
Corner Radius (Metric)3
Unit Of MeasureMetric
Corner Radius3 mm
Neck Diameter19.50 mm
Overall Length 2 (Inch)8.7
Cutting DirectionRight
Neck Diameter (Decimal)0.77
Neck Diameter (Metric)19.5
Connection Diameter (Decimal)0.79
Connection Diameter (Metric)20
Connection Diameter ToleranceH5
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceH6
Head Length (Decimal)3.94
Head Length (Metric)100
Length (Decimal)8.7
Width (Decimal)0.98
Height (Decimal)0.98
Length TypeLong
Protruding Length (Decimal)4.1
Protruding Length (Metric)104
Shank Length (Decimal)1.97
Shank Length (Metric)50
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle55 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)2.05
Peripheral Effective Cutting Edge Count2
Rake Angle Axial7 degrees
Base Item Number#54595204
Maximum Depth Of Cut (Inch)2.05
Neck Diameter (Inch)0.77
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)52
Shank Length (Inch)1.969
Connection diameter machine side (inch)0.787
Item Width (Inches)0.98
Connection type machine sideCYL
Overall Length (Decimal Inch)6.063
Connection diameter machine side (mm)20
Connection diameter machine side toleranceh5
Base MaterialK10F
Item Weight (lbs)0.128
Item Height (Inches)0.98
Cutting Diameter (mm)2.00 cm
Item Length (Inches)8.7
Head Length (Inch)3.937
Shank Length (mm)50
