Ceratizit

54596201

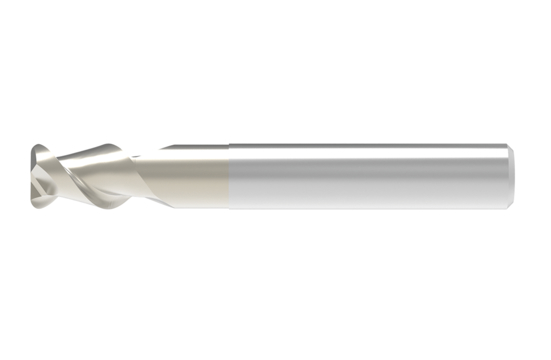

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Helix Angle55 degrees
MaterialVHM
Cutting Diameter (Inch)0.79
Corner Radius (Inch)0.08
Overall Length (Inch)4.49
Cutting Diameter (Metric)20
Length Of Cut (Metric)32
Overall Length (Metric)114
Coating/FinishTI1005
Corner Radius (Metric)2
Unit Of MeasureMetric
Corner Radius2 mm
Neck Diameter19.50 mm
Overall Length 2 (Inch)8.7
Cutting DirectionRight
Neck Diameter (Decimal)0.77
Neck Diameter (Metric)19.5
Connection Diameter (Decimal)0.79
Connection Diameter (Metric)20
Connection Diameter ToleranceH5
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceH6
Head Length (Decimal)2.37
Head Length (Metric)60
Length (Decimal)8.7
Width (Decimal)1.1
Height (Decimal)1.1
Length TypeShort
Protruding Length (Decimal)2.52
Protruding Length (Metric)64
Shank Length (Decimal)1.97
Shank Length (Metric)50
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle55 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)1.26
Peripheral Effective Cutting Edge Count2
Rake Angle Axial7 degrees
Base Item Number#54596201
Maximum Depth Of Cut (Inch)1.26
Neck Diameter (Inch)0.77
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)32
Shank Length (Inch)1.969
Connection diameter machine side (inch)0.787
Item Width (Inches)1.1
Connection type machine sideCYL
Overall Length (Decimal Inch)4.488
Connection diameter machine side (mm)20
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)1.004
Item Height (Inches)1.1
Cutting Diameter (mm)2.00 cm
Item Length (Inches)8.7
Head Length (Inch)2.362
Shank Length (mm)50
