IBC Member Market

Ceratizit

54620103

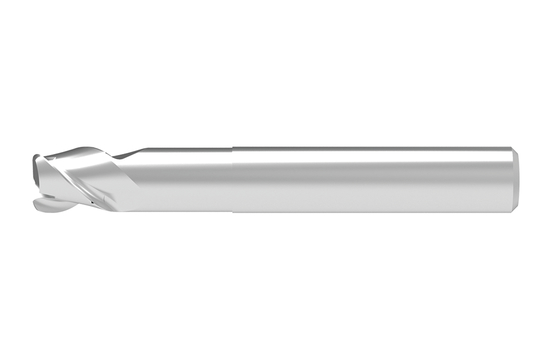

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Helix Angle45 degrees
MaterialK10F
Cutting Diameter (Inch)0.4
Corner Radius (Inch)0.07
Overall Length (Inch)2.92
Cutting Diameter (Metric)10
Length Of Cut (Metric)11
Overall Length (Metric)74
Coating/FinishBLANK
Corner Radius (Metric)2
Unit Of MeasureMetric
Corner Radius2 mm
Neck Diameter9.70 mm
Overall Length 2 (Inch)3.5
Cutting DirectionRight
Neck Diameter (Decimal)0.39
Neck Diameter (Metric)9.7
Connection Diameter (Decimal)0.4
Connection Diameter (Metric)10
Connection Diameter ToleranceH5
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceH6
Head Length (Decimal)1.19
Head Length (Metric)30
Length (Decimal)3.5
Width (Decimal)0.71
Height (Decimal)0.71
Length TypeLong
Protruding Length (Decimal)1.34
Protruding Length (Metric)34
Shank Length (Decimal)1.58
Shank Length (Metric)40
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle45 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)0.44
Peripheral Effective Cutting Edge Count3
Rake Angle Axial7 degrees
Base Item Number#54620103
Maximum Depth Of Cut (Inch)0.44
Neck Diameter (Inch)0.39
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)11
Shank Length (Inch)1.575
Connection diameter machine side (inch)0.394
Item Width (Inches)0.71
Connection type machine sideCYL
Overall Length (Decimal Inch)2.913
Connection diameter machine side (mm)10
Connection diameter machine side toleranceh5
Base MaterialK10F
Item Weight (lbs)0.175
Item Height (Inches)0.71
Cutting Diameter (mm)1.00 cm
Item Length (Inches)3.5
Head Length (Inch)1.181
Shank Length (mm)40
