Ceratizit
54625091

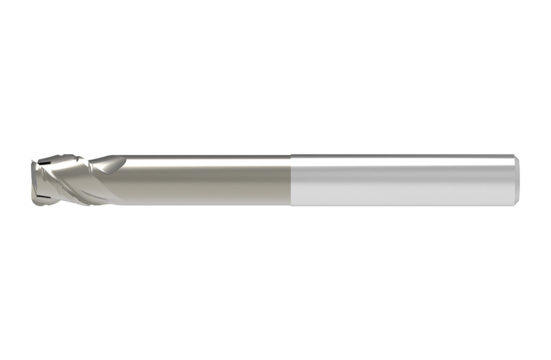

HPC SOLID CARBIDE ROUGH MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.71 |
|---|---|
| Diameter (Metric) | 9 |
| Diameter (Inch) | 0.36 |
| Length Of Cut (Metric) | 14 |
| Material | VHM |
| Overall Length (Metric) | 94 |
| Coating/Finish | TI1005 |
| Overall Length 2 (Inch) | 4.49 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Corner Radius (Decimal) | 0.04 |
| Corner Radius (Metric) | 1 |
| Max. Cutting Depth (Decimal) | 0.56 |
| Neck Diameter (Decimal) | 0.35 |
| Neck Diameter (Metric) | 8.7 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.97 |
| Head Length (Metric) | 50 |
| Length Type | Extra Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 4.49 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 2.13 |
| Protruding Length (Metric) | 54 |
| Corner Radius Tolerance (Decimal) | ±0.01 |
| Corner Radius Tolerance (Metric) | ±0.01 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 9 degrees |
| Base Item Number | #54625091 |
| Flute Helix Angle | 45 |
| Neck Diameter (Inch) | 0.35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
