Ceratizit
54640164

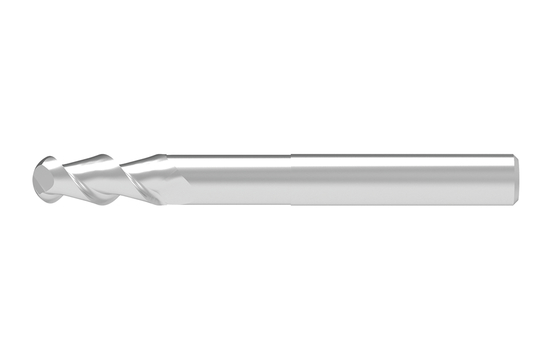

HPC SOLID CARBIDE BALL NOSED CUTTER
Specifications
| Coating/Finish | Blank |
|---|---|
| Diameter (Metric) | 16 |
| Overall Length (Inch) | 5.2 |
| Length Of Cut (Inch) | 0.67 |
| Overall Length (Metric) | 132 |
| Cutting Direction | Right |
| Material | K10F |
| Length Of Cut (Metric) | 17 |
| Diameter (Inch) | 0.63 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | H6 |
| Head Length (Decimal) | 3.15 |
| Head Length (Metric) | 80 |
| Length Type | Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 5.55 |
| Width (Decimal) | 0.98 |
| Neck Diameter (Decimal) | 0.61 |
| Neck Diameter (Metric) | 15.5 |
| Protruding Length (Decimal) | 3.31 |
| Protruding Length (Metric) | 84 |
| Shank Length (Metric) | 48 |
| Shank Length (Decimal) | 1.89 |
| Flute Helix Angle | 55 degrees |
| Overall Length 2 (Decimal) | 5.55 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #54640164 |
| Neck Diameter (Inch) | 0.61 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 17 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 0.63 |
| Item Width (Inches) | 0.98 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | h5 |
| Base Material | K10F |
| Item Weight (lbs) | 0.788 |
| Item Height (Inches) | 0.98 |
| Cutting Diameter (mm) | 1.60 cm |
| Item Length (Inches) | 5.55 |
| Head Length (Inch) | 3.15 |
| Shank Length (mm) | 48 |
| Cutting Diameter Tolerance | h6 |
| Cutting Diameter (Inch) | 0.63 |
