Ceratizit
54652162

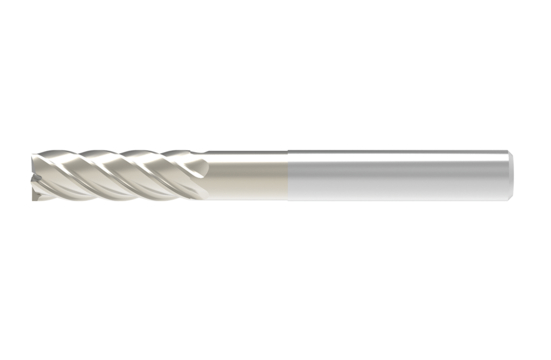

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 5.2 |
|---|---|
| Diameter (Metric) | 16 |
| Diameter (Inch) | 0.63 |
| Length Of Cut (Metric) | 49 |
| Material | VHM |
| Overall Length (Metric) | 132 |
| Coating/Finish | TI1005 |
| Overall Length 2 (Inch) | 5.55 |
| Cutting Direction | Right |
| Helix Angle | 38 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Decimal) | 1.93 |
| Neck Diameter (Decimal) | 0.61 |
| Neck Diameter (Metric) | 15.5 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 3.15 |
| Head Length (Metric) | 80 |
| Length Type | Extra Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 5.55 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 3.31 |
| Protruding Length (Metric) | 84 |
| Peripheral Effective Cutting Edge Count | 7 |
| Rake Angle Axial | 17 degrees |
| Base Item Number | #54652162 |
| Flute Helix Angle | 38 |
| Neck Diameter (Inch) | 0.61 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
