Ceratizit
54700268

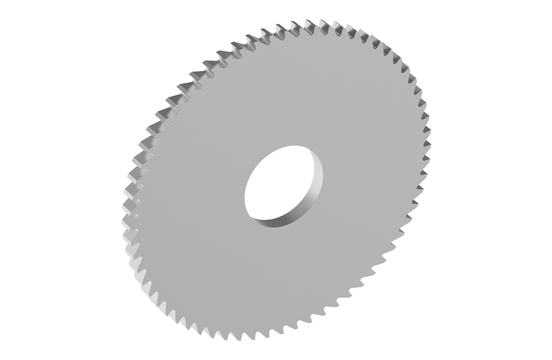

SOLID CARBIDE SAW BLADE
Specifications
| Long Description | SOLID CARBIDE SAW BLADE CS.DIN1837-A.30X1,60.Z48 |
|---|---|
| Short Description | CS.DIN1837-A.30X1,60.Z48 |
| Product Line | WNT STANDARD |
| Overall Height (Metric) | 1.6 |
| Connection diameter machine side (inch) | 0.315 |
| Item Width (Inches) | 1.65 |
| Connection diameter machine side (mm) | 8 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.047 |
| Item Height (Inches) | 0.43 |
| Cutting Diameter (mm) | 3.00 cm |
| Peripheral Effective Cutting Edge Count | 48 |
| Item Length (Inches) | 1.65 |
| Coating | BLANK |
| Overall Height (Inch) | 0.063 |
| Cutting Diameter Tolerance | js15 |
| Cutting Diameter (Inch) | 1.181 |
