Ceratizit
54700321

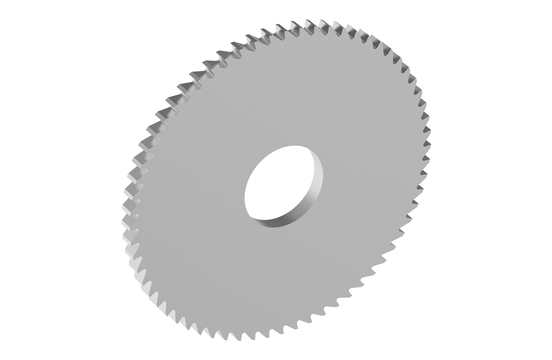

SOLID CARBIDE SAW BLADE
Specifications
| Long Description | SOLID CARBIDE SAW BLADE CS.DIN1837-A.40X1,90.Z48 |
|---|---|
| Short Description | CS.DIN1837-A.40X1,90.Z48 |
| Product Line | WNT STANDARD |
| Overall Height (Metric) | 1.9 |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 2.2 |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.1 |
| Item Height (Inches) | 0.39 |
| Cutting Diameter (mm) | 4.00 cm |
| Peripheral Effective Cutting Edge Count | 48 |
| Item Length (Inches) | 2.2 |
| Coating | BLANK |
| Overall Height (Inch) | 0.075 |
| Cutting Diameter Tolerance | js15 |
| Cutting Diameter (Inch) | 1.575 |
