Ceratizit
54700404

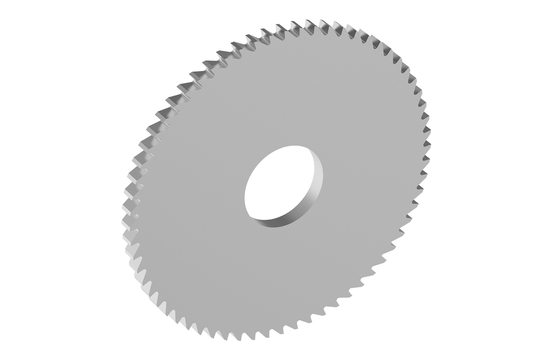

SOLID CARBIDE SAW BLADE
Specifications
| Long Description | SOLID CARBIDE SAW BLADE CS.DIN1837-A.63X0,30.Z128 |
|---|---|
| Short Description | CS.DIN1837-A.63X0,30.Z128 |
| Product Line | WNT STANDARD |
| Overall Height (Metric) | 0.3 |
| Connection diameter machine side (inch) | 0.63 |
| Item Width (Inches) | 3.07 |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.113 |
| Item Height (Inches) | 0.39 |
| Cutting Diameter (mm) | 6.30 cm |
| Peripheral Effective Cutting Edge Count | 128 |
| Item Length (Inches) | 3.07 |
| Coating | BLANK |
| Overall Height (Inch) | 0.012 |
| Cutting Diameter Tolerance | js15 |
| Cutting Diameter (Inch) | 2.48 |
