Ceratizit
5470047200

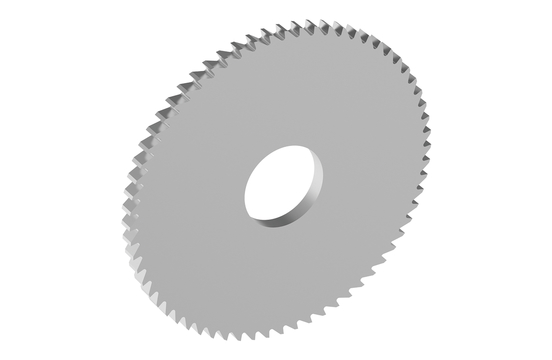

SOLID CARBIDE SAW BLADE
Specifications
| Long Description | SOLID CARBIDE SAW BLADE CS.DIN1837-A.80X2,00.Z80 |
|---|---|
| Short Description | CS.DIN1837-A.80X2,00.Z80 |
| Product Line | WNT STANDARD |
| Overall Height (Metric) | 2 |
| Connection diameter machine side (inch) | 0.866 |
| Item Width (Inches) | 4.02 |
| Connection diameter machine side (mm) | 22 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.416 |
| Item Height (Inches) | 0.43 |
| Cutting Diameter (mm) | 8.00 cm |
| Peripheral Effective Cutting Edge Count | 80 |
| Item Length (Inches) | 4.02 |
| Coating | BLANK |
| Overall Height (Inch) | 0.079 |
| Cutting Diameter Tolerance | js15 |
| Cutting Diameter (Inch) | 3.15 |
