Ceratizit
5470052300

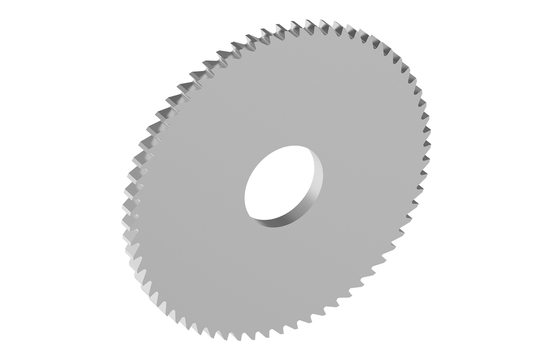

SOLID CARBIDE SAW BLADE
Specifications
| Long Description | SOLID CARBIDE SAW BLADE CS.DIN1837-A.100X2,50.Z100 |
|---|---|
| Short Description | CS.DIN1837-A.100X2,50.Z100 |
| Product Line | WNT STANDARD |
| Overall Height (Metric) | 2.5 |
| Connection diameter machine side (inch) | 0.866 |
| Item Width (Inches) | 4.53 |
| Connection diameter machine side (mm) | 22 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.757 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 10.00 cm |
| Peripheral Effective Cutting Edge Count | 100 |
| Item Length (Inches) | 4.53 |
| Coating | BLANK |
| Overall Height (Inch) | 0.098 |
| Cutting Diameter Tolerance | js15 |
| Cutting Diameter (Inch) | 3.937 |
