Ceratizit
56100101

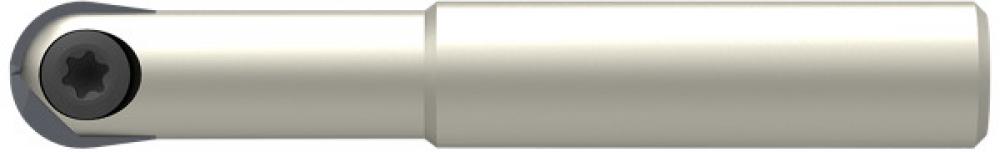

BALL NOSED END MILLING CUTTER
Specifications
| Head Length (Inch) | 1.378 |
|---|---|
| Neck Diameter (Inch) | 0.346 |
| Cutting Diameter (Inch) | 0.394 |
| Head Length (Metric) | 35.00 |
| Overall Length (Inch) | 3.150 |
| Neck Diameter (Metric) | 8.8 |
| Long Description | BALL NOSED END MILLING CUTTER K2000C.10.35.80 |
| Short Description | K2000C.10.35.80 |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.394 |
| Coolant | WITHOUT_IC,IC |
| Item Width (Inches) | 0.63 |
| Overall Length (mm) | 8 cm |
| Connection diameter machine side (mm) | 10.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.164 |
| Item Height (Inches) | 0.63 |
| Designation | K2000C.10.35.80 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 3.54 |
