Ceratizit
56110083

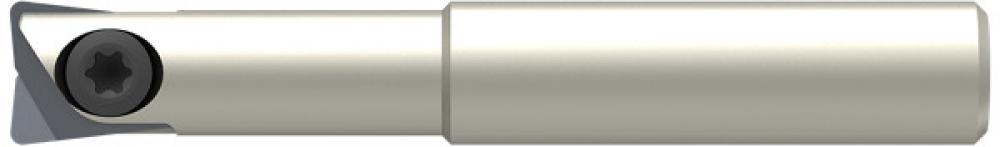

BALL NOSED END MILLING CUTTER
Specifications
| Head Length (Inch) | 1.654 |
|---|---|
| Neck Diameter (Inch) | 0.276 |
| Cutting Diameter (Inch) | 0.315 |
| Head Length (Metric) | 42.00 |
| Overall Length (Inch) | 5.984 |
| Neck Diameter (Metric) | 7.00 |
| Long Description | BALL NOSED END MILLING CUTTER K2005C.8.42.152 |
| Short Description | K2005C.8.42.152 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 9.5 |
| Connection diameter machine side (inch) | 0.315 |
| Coolant | WITHOUT_IC,IC |
| Item Width (Inches) | 0.63 |
| Overall Length (mm) | 15.2 cm |
| Connection diameter machine side (mm) | 8.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.243 |
| Item Height (Inches) | 0.63 |
| Designation | K2005C.8.42.152 |
| Cutting Diameter (mm) | 8.00 mm |
| Item Length (Inches) | 8.11 |
