Ceratizit
5614177900

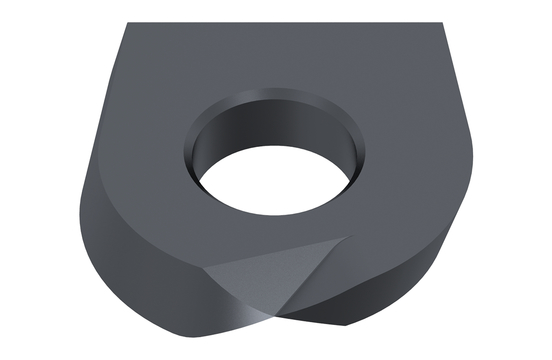

BALL NOSED CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 16 |
|---|---|
| Corner Radius (Inch) | 0.63 |
| Inscribed Circle Diameter (Metric) | 32.00 |
| ISO Code | ROHX3250R16 |
| Insert Length (Metric) | 26 |
| Insert Length (Inch) | 1.024 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 5 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 8.00 |
| Item Width (Inches) | 3.03 |
| Base Material | VHM |
| Item Weight (lbs) | 1.312 |
| Item Height (Inches) | 0.67 |
| Designation | 3250 R16 |
| Inscribed Circle (Metric) | 32 |
| Item Length (Inches) | 4.45 |
| insert interface code | RO3205M03R |
