Ceratizit
5616575200

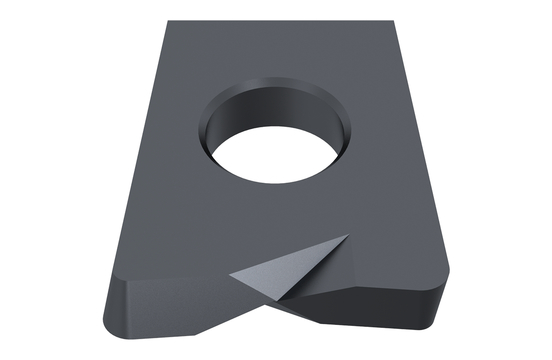

TORUS CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 1 |
|---|---|
| Corner Radius (Inch) | 0.039 |
| Inscribed Circle Diameter (Metric) | 20.00 |
| ISO Code | XOHX203010 |
| Cutting Edge Effective Length (Metric) | 18 |
| Cutting Edge Length (Metric) | 18.00 |
| Insert Length (Metric) | 18 |
| Insert Length (Inch) | 0.709 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 5.00 |
| Item Width (Inches) | 2.2 |
| Base Material | VHM |
| Item Weight (lbs) | 0.386 |
| Item Height (Inches) | 0.55 |
| Designation | 203010 |
| Inscribed Circle (Metric) | 20 |
| Item Length (Inches) | 5.43 |
| insert interface code | XO2003103R |
