Ceratizit
56314621

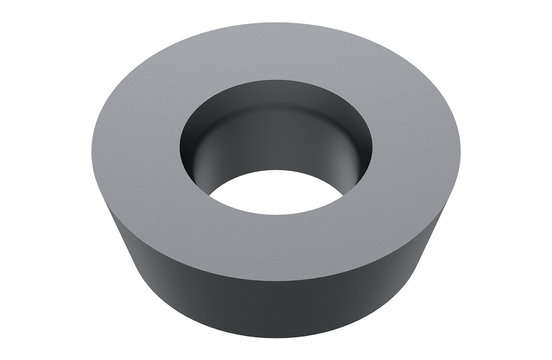

CARBIDE MILLING INSERT
Specifications
| Inscribed Circle Diameter (Metric) | 7.00 |
|---|---|
| ISO Code | RDEX 07T1M0T |
| Clearance Angle Major | 15.0 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 1.99 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.054 |
| Item Height (Inches) | 0.51 |
| Designation | 07T1M0T |
| Inscribed Circle (Metric) | 7 |
| Item Length (Inches) | 3.86 |
| insert interface code | RD07T1M03N |
