Ceratizit
5641104206

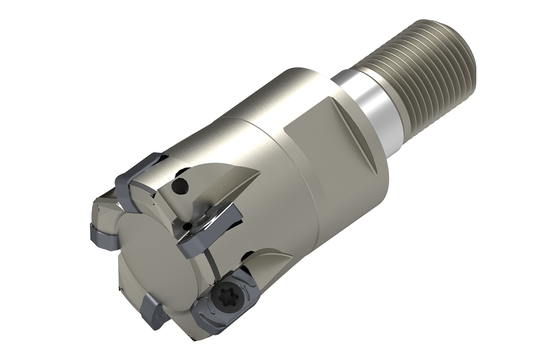

MAXIMILL SCREW-IN FACE MILLING CUTTER
Specifications
| Material | 5641104206 |
|---|---|
| Head Length (Inch) | 1.102 |
| Neck Diameter (Inch) | 1.142 |
| Head Length (Metric) | 28.00 |
| Cutting Diameter (Inch) | 1.654 |
| Neck Diameter (Metric) | 29.00 |
| Long Description | MAXIMILL SCREW-IN FACE MILLING CUTTER GDHFC.42.6.M16.09.IK |
| Short Description | GDHFC.42.6.M16.09.IK |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 0.75 |
| Connection diameter machine side (inch) | 0.669 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 1.89 |
| Overall Length (Decimal Inch) | 2.559 |
| Overall Length (mm) | 6.5 cm |
| Connection diameter machine side (mm) | 17.00 |
| Item Weight (lbs) | 0.694 |
| Item Height (Inches) | 1.89 |
| Designation | GDHFC.42.R.06-09 |
| Protruding Length (Metric) | 42.00 |
| Cutting Diameter (mm) | 4.20 cm |
| Drive Size (Metric) | 22 |
| Item Length (Inches) | 3.74 |
