Ceratizit
56511521

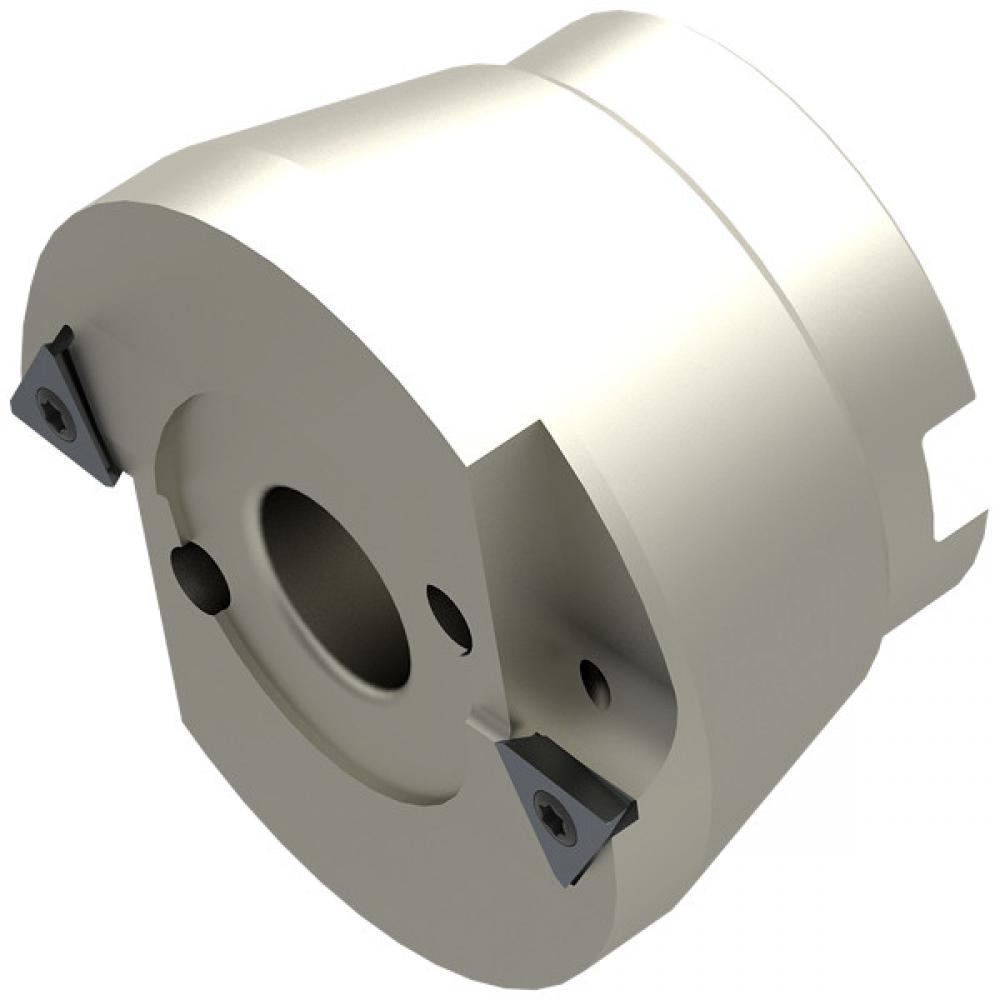

SHELL FINISH MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 2.047 |
|---|---|
| Overall Length (Inch) | 1.693 |
| Long Description | SHELL FINISH MILLING CUTTER F5000A.52.2.43-16.IK |
| Short Description | F5000A.52.2.43-16.IK |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 0.2 |
| Connection diameter machine side (inch) | 0.866 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 2.56 |
| Overall Length (mm) | 4.3 cm |
| Connection diameter machine side (mm) | 22.00 |
| Item Weight (lbs) | 1.078 |
| Item Height (Inches) | 2.56 |
| Designation | F5000A.52.2.43.IK |
| Cutting Diameter (mm) | 5.20 cm |
| Item Length (Inches) | 2.95 |
| Hub Diameter (Metric) | 48.00 |
